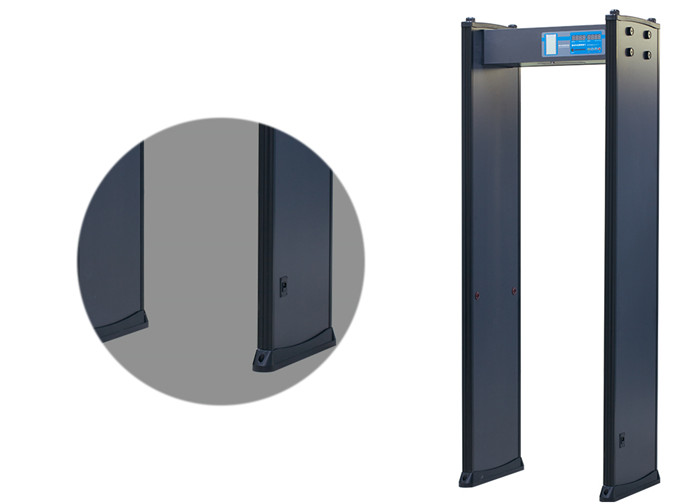

    Security Walk Through Metal Detector Door Frame , Metal Detection Systems

    Ask Lasest Price
    Brand Name : Zhonganxie
    Model Number : TD-800
    Certification : CE, FCC, ROHS
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Security Walk Through Metal Detector Door Frame , Metal Detection Systems

    Multi-alarm Zones 50 working bands Door Frame Metal Detector with Sound Alarm

    Features

    1. Automatic fault diagnostic
    2. Locate metals hidden on the body
    3. Inspection rate: 1 person/second
    4. Detection zones: 4 zones
    5. Easy to assemble using instruction manuals
    6. Head-to-toe uniform detection field
    7. Sensitivity level, three patterns such as high, middle and low for various requirements
    8. visible alarm simultaneously to ascertain layout of metal articles
    9. Count passengers and alarm times automatically
    10. Password protection and only authorized person can operate
    11. High-portable
    12. Nice for use at building entrances, malls, airports and market or factory entries
    13. ensitive control knob for precise setting at desired levels
    14. Sensitivity adjustable, three patterns such as high, middle and low for various requirements
    15. pre-set metal size, weight, volume, location to exclude coin, key and belt
    16. Anti-interference function, using advanced interactive transmitting and receiving to avoid interference

    Specification


    Model NumberTD-800
    Technical Parameters
    Vertical dimension2230x580x850mm
    Vertical channel size2000x700mm
    Main box packing size755x340x210mm
    Detection door packing size2290x630x190mm
    Net weight of main box/detection door56.6KG
    Gross weight of main box/detection door62.8KG
    Working voltage90V~240V 50/60Hz
    Power consumption20W
    Working frequency range1-50 bands
    Working environment temperature-20℃ ~ 65℃
    Installation environment(W) 100cm* (L) 200cm
    (minimum range without metal)

    Product detail



    Application


    Airports and Seaports,subway,Railway,Bus Station,Electronic Factory,Government Buildings,exhibition ,Embassy,Police office,Court,Prisons and jails,Military Bases,Hospitals,Banks,Financial Institutions,Colleges and Schools,Hotels and Casinos,Power plants,Research Sites,Sports Stadiums


    Exhibition display



    Workshop display
