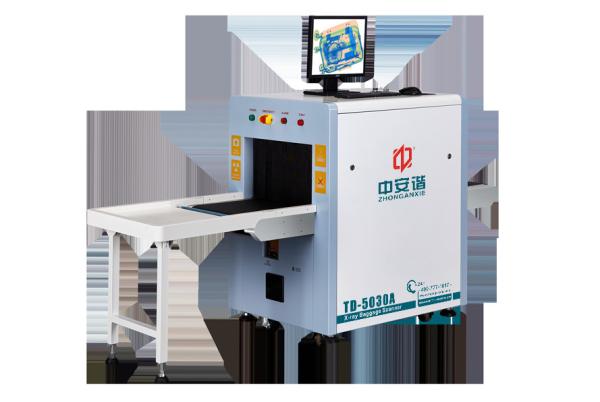

Professional Safety X Ray Baggage Scanner Equipment 4 Mm Steel Penetration

    Buy cheap Professional Safety X Ray Baggage Scanner Equipment 4 Mm Steel Penetration from wholesalers

    Buy cheap Professional Safety X Ray Baggage Scanner Equipment 4 Mm Steel Penetration from wholesalers
    • Buy cheap Professional Safety X Ray Baggage Scanner Equipment 4 Mm Steel Penetration from wholesalers

    Professional Safety X Ray Baggage Scanner Equipment 4 Mm Steel Penetration

    Ask Lasest Price
    Model Number : 5030A
    Certification : CE, FCC, ROHS
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs per month
    Delivery Time : 5-7 working days
    Brand Name : Zhonganxie
    • Product Details
    • Company Profile

    Professional Safety X Ray Baggage Scanner Equipment 4 Mm Steel Penetration

    Professional Safety X Ray Baggage Scanner Equipment 4 Mm Steel Penetration


    General Specification

    Tunnel Size: 500(W)*300(H)mm

    Conveyor Speed: 0.22m/s

    Conveyor Max Load: 150kg

    Dose per Inspection: <2.9 μGy/h

    Resolution: <0.101mm Metal Wire

    Penetration: 4 mm Steel

    Film Safety: Guarantee ISO1600 Film

    1. Magnifier: Partial magnifying function
    2. Brightening/dimming: Increase/Decrease brightness of image
    3. Image recurrence: Display all the the previous images and process any one of them
    4. Image restoration: Restore image to initial status
    5. Image storage: Real-time store any image and process it in operation status
    6. X-ray sensor: L-shaped photodiode array detector (single energy), 24bit depth
    7. Display: High-resolution 19 inch color LCD display
    8. Edge enhancement: Object contour edge is more distinct
    9. Super image enhancement: Image detail is more distinct



    X-ray Generator

    Ray Beam direction

    Bottom-illuminated

    Tube current

    0.4~0.5mA(adjustable)

    Tube voltage

    100-160 kV(adjustable)

    Ray beam divergence angle

    60°

    The cooling / work cycle

    Sealed oil cooling / 100%

    Image Processing System

    X-ray sensor

    L-shaped photodiode array detector (C), 24bit depth

    Monitor

    high resolution 19 inch LCD SamSung monitor

    Color image display

    24-bit true color display

    Edge Enhancement

    the outline of objects will be more clear

    Super Image Enhancement

    the details of the image are more clear

    High penetration display

    improve image contrast in bright areas, so the easy penetrating area

    will be more clear

    Low penetration display

    improve image contrast in dark areas, so the difficult penetrating area

    will be more clear

    Magnifier

    local amplification function

    Brighten / darken

    Increase/ decrease image brightness

    Image pull back / front pull

    Show the top 20 images, and the current image can be any image

    processing

    Image Restoration

    Restored to its original state

    Image Storage

    Real-time save any image, any image can be processed arbitrarily ,

    continuous work to save

    Environmental conditions

    Operating temperature / humidity

    0℃~45℃/20%~95% (No condensation)

    Storage temperature / humidity

    -20℃~60℃/20%~95% (No condensation)

    Operating Voltage

    90V~250V 50/60Hz

    Power consumption

    1.0KW(maximum)

    Noise level

    <55dB (A)



    Technical Standards

    Technical Parameters

    Tunnel size

    500(W)×300(H)mm

    Conveyor speed

    0.22m/s

    Load

    150 kg

    Resolution

    ∮0.0787 mm

    Penetration

    ≥40 mm steel plate

    Monitor

    Samsung 19in LCD Monitor

    Storage

    500G hard drive to save any image in real time, can store more than

    100,000 and can make any image processing, and continuous work to save.

    Noise

    < 55dB(A)

    Operating system

    windowsXP

    Film Safety

    Safety to the ISO1600

    Leaking radiation dose rate

    Away from any device outer surface of 5cm, the ray irradiation leak rate

    should be < 0.05µGy/H

    Dimensions

    (L) 1750mm (W)750mm(H)1300mm

    NW / GW

    290 kg / 360 kg


    Applications:

    Airport, Train station, Bus station, Government Building,Embassy,
    Conference Center,Exhibition,Hotel, Social Events,
    Post office, Logistics
