    18 Pin Point Zones Walk Through Metal Detector Security Gate LCD Display Screen

    Ask Lasest Price
    Brand Name : Arsenal
    Model Number : Arsenal-24
    Certification : CE, FCC, ROHS
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 10000pcs per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    18 Pin Point Zones Walk Through Metal Detector Security Gate LCD Display Screen

    18 Pin Point Zones Walk Through Metal Detector Security Gate LCD Display Screen


    Features


    1. atented structural components, and windproof, moistureproof, dustproof design.
    2. High performance , high sensitivity , high stability,it can detect 6g ferrous metals (flaky landscape) accurately.
    3. Multi-probe , multi-zone, multi- launch and reception , interactive detection technology .
    4. Set each zone's sensitivity freely,and it can effectively exclude their own keys, belt buckles, bra, mobile phones and other metal objects.
    5. High strength thick door made of fireproof board , forming aluminum column structure , after antioxidant treatment , high hardness ,no deformation , not easy to scratch .
    6. The super brightness SMD double district alarm indicators , multi-angle display the hiding place of prohibited items.
    7. High-decibel alarm sound speakers,set the size of the alarm sound or be mute according to user's need.
    8. It can be connected to the Internet, through a single PC and special software ,it can manage multiple devices ,to meet the need of large-scale activities , events , and users who have to manage multiple devices at a time.
    9. Able to link external devices such as : three roller gates, wing gates , access control, attendance, and the devices that need to control and register each other.
    10. With upgrade ports, we provide lifelong upgrade services, it can be achieved the secondary development according to user's need.
    11. The 3D multi-angle infrared design, can better prevent the interference of strong light, sunlight and other external light ( patented technology )
    12. The unique infrared start-stop technology, is better to meet customers' need.
    13. Full wraparound high booties , double pivot design , and not affected by uneven ground , it can be better to ensure the stability of the door , which has depended beyond the traditional design.

    Specifications


    Type

    2014

    Model Number

    ARSENAL-24

    Vertical dimension

    2220x690x850mm

    Vertical channel size

    2000x700mm

    Main box packing size

    755x435x255mm

    Detection door packing size

    2290x635x210mm

    Net weight of main box/detection door

    54.8kg

    Gross weight of main box/detection door

    64kg

    Working voltage

    90V~250V 50/60Hz

    Power consumption

    20W

    Working frequency range

    1-6 bands

    Working environment temperature

    -20℃ ~ 55℃

    Installation environment

    (W) 100cm* (L) 200cm
    (minimum range without metal)


    Product detail

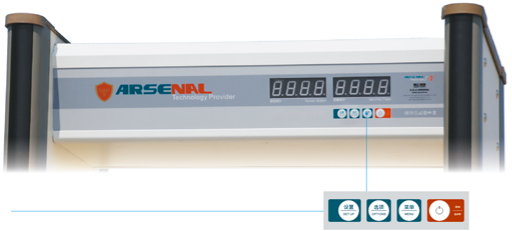

    1. Simple and elegant front panel design, reasonable 4 keys management,marked in English and Chinese, easy to operate.

    2. With upgrade ports, we provide lifelong upgrade services, it can achieve the secondary development

    according to user's need.


    3. Slant main chassis designed all metal structure , patented large countersunk head bolts for doors, easy to assemble , the structure is more stable.

    4. The 3D multi angle infrared design, can better prevent the interference of strong light, sunlight and other external light ( patented technology )


    5. Using 120 high brightness F8/LED alarm location indicator, multi angle display the hiding place of prohibited items.

    6. Full wraparound high booties , double pivot design , and not affected by uneven ground , it can be better to ensure the stability of the door , which has depended beyond the traditional design.

    7. At the back of the main box there is the power connector,which is moistureproof and waterproof.


    Applications


    Airport, Customs, Electronic Factory , Gymnasium, Court of Justice ,Adjudication Division , Prison , bull session VIP place , Nightclub, Army,Government buildings,Bar and so on.
