    24 Zones HDMI LCD Walk Through Metal Detector Door Frame Water Proof

    Ask Lasest Price
    Brand Name : zhonganxie
    Model Number : 600T.S/24
    Certification : CE, FCC, ROHS
    Price : 1250
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 500units/month
    Delivery Time : 8 workdays
    • Product Details
    • Company Profile

    24 Zones HDMI LCD Walk Through Metal Detector Door Frame Water Proof

    24 Zones HDMI LCD Walk Through Metal Detector Door Frame Water Proof

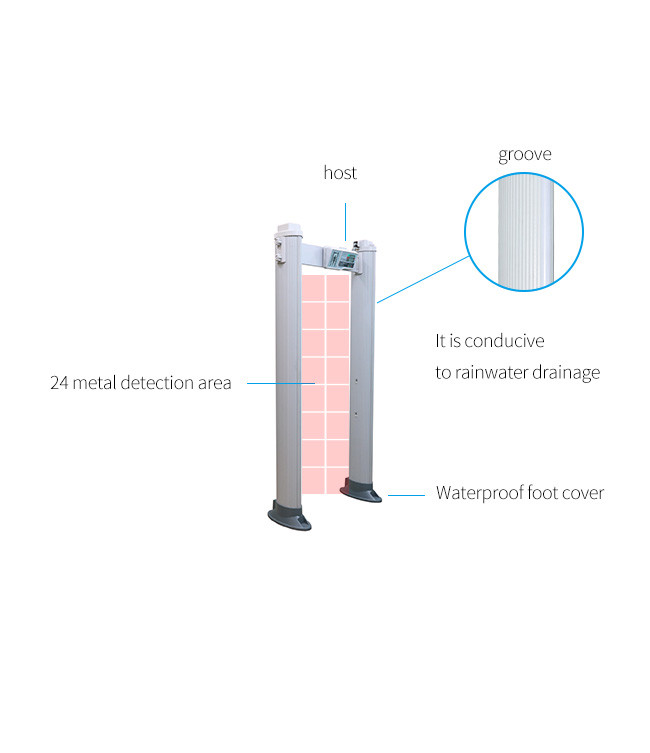

    24 Zones Outdoor Walk Through Metal Detector water proof


    Product features

    Multi-zone technology:18 detection zones,adjust sensitivity of each zone individually.
    Touch screen:7-inch HDMI LCD touch screen,easy to operate and understand.
    Mobile connection technology: realize mobile APP remote control(optional).

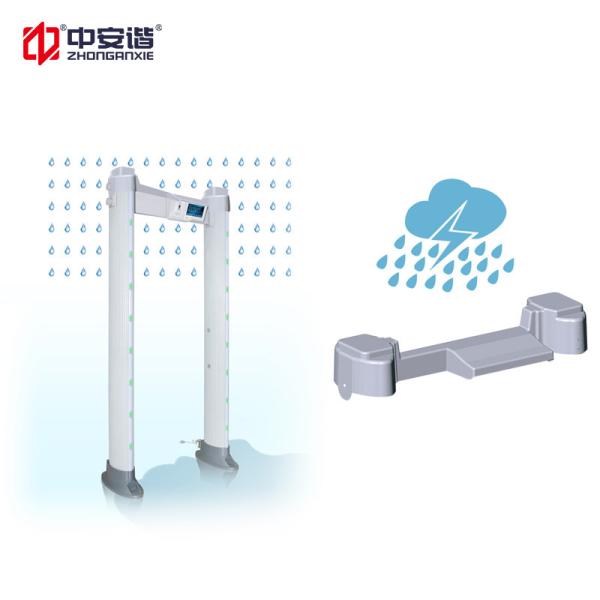

    IP Grade: IP55 superior waterproof performance.
    Self calibration once power on.
    Self diagnostic, it will inform the user when exit the system.
    Start-stop technology:infrared devices with automatic start-stop technology.
    Adjust the alarm sounds arbitrarily.
    Adjust the working frequency automatically or manually.
    Detection Technology:Even detection technology, no blind spot.
    Professional detection process:built in 60 different detection occasions(providing upgrade services).
    Working frequency: 100 working frequency.
    Security level:100 security levels.
    Detection sensitivity of each zone: From 0 to 255 level.
    Multi-alarm sounds to choose-to fit different applications.
    Counter: Record the pass and alarm numbers.
    Query function: The system has real-time information query function.
    Intelligent Standby: The system has intelligent standby operation alerts.
    Working Standby:16 high-brightness LED indicator on.
    Detection speed: more than 60 people pass and detect in 1 minute.


    Features


    1. Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
    2. Start-stop technology:infrared devices with automatic start-stop technology.
    3. Adjust the alarm sounds arbitrarily.
    4. Tamper-Proof: operate program is protected by password.
    5. Connect with computer, camera, turnstile,etc (Optional)
    6. Adjust the working frequency automatically or manually.
    7. LCD friendly operation interface for user
    8. The metal detecting gate can be operated either through the remote control or by the operation panel directly

    9. Detection Technology:Even detection technology, no blind spot.
    10. Professional detection process:built in 60 different detection occasions(providing upgrade services).
    11. Security level:100 security levels.
    12. Protection with password: The protection from the password can only allow the authorized person for the operations. It is highly safe
    13. Automatic recording number of people passed, alarming times and strength of interference on the large LCD


    Technical Parameters
    Product model
    24 zones 7-inch touch screen
    Detection object
    Forbidden object, magnetic metal
    Vertical dimension
    2300x940x500mm
    Passage dimension
    2051x720x300mm (width can be customized 720 ~ 1500mm)
    Package dimension
    2400x540x620mm
    Working Humidity
    99%, non-condensing
    Working environment
    -20℃~65℃
    Power supply
    The whole system is equipped with polymer battery, life time 8, 16, 24, 48, 72 hours(optional)
    Input
    AC 110V~240V/50HZ~60HZ
    Output
    DC 12V/5A 12W
    Weight
    N.W.: 53KGS, G.W.: 66KGS

    24 Zones HDMI LCD Walk Through Metal Detector Door Frame Water Proof24 Zones HDMI LCD Walk Through Metal Detector Door Frame Water Proof



    Our advantages

    1. Brands cooperation,ODM,OEM
    2. Product design, technology development, parts processing and sales integration services
    Sales of a complete set of technical solutions
    3. Technical guidance and training
    4. One of the world's top four brands, leading technology, quality first, service first-class
    Twenty-four hours service


    Application

    Airports, Sporting Events, Prisons, Nuclear Facilities, Correctional Facilities, Transportation Terminals, Public and Private Buildings, Loss Prevention, Schools, Corporate Security, Stadiums/ Concerts, Historical Landmarks

    Our service

    1. We have 2000 square meter factory, 13 floor, 50 employess and 5 R&D team
    2. We have passed ISO9001, 16001, OHSMS18001, Health Inspection.
    3. We have full security product line which can meet your different needs
    4. We never stop researching and will have one or two new product each year
    5. We listen to our customer and solve their problems
